vtkboneLinearOrthotropicMaterial Class Reference

An object representing a linear orthotropic material. More...

#include <vtkboneLinearOrthotropicMaterial.h>

Inheritance diagram for vtkboneLinearOrthotropicMaterial:
Inheritance graph
[legend]

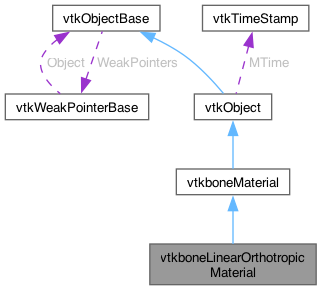

Collaboration diagram for vtkboneLinearOrthotropicMaterial:
Collaboration graph
[legend]

Public Member Functions

virtual const char * GetClassName ()

virtual int IsA (const char *type)

void PrintSelf (ostream &os, vtkIndent indent) override

virtual void SetYoungsModulusX (double)

virtual double GetYoungsModulusX ()

virtual void SetYoungsModulusY (double)

virtual double GetYoungsModulusY ()

virtual void SetYoungsModulusZ (double)

virtual double GetYoungsModulusZ ()

virtual void SetPoissonsRatioYZ (double)

virtual double GetPoissonsRatioYZ ()

virtual void SetPoissonsRatioZX (double)

virtual double GetPoissonsRatioZX ()

virtual void SetPoissonsRatioXY (double)

virtual double GetPoissonsRatioXY ()

double GetPoissonsRatioZY ()

double GetPoissonsRatioXZ ()

double GetPoissonsRatioYX ()

virtual void SetShearModulusYZ (double)

virtual double GetShearModulusYZ ()

virtual void SetShearModulusZX (double)

virtual double GetShearModulusZX ()

virtual void SetShearModulusXY (double)

virtual double GetShearModulusXY ()

double GetShearModulusZY ()

double GetShearModulusXZ ()

double GetShearModulusYX ()

virtual vtkboneMaterial * Copy () override

virtual vtkboneMaterial * ScaledCopy (double factor) override

- Public Member Functions inherited from vtkboneMaterial
void PrintSelf (ostream &os, vtkIndent indent) override

virtual void SetName (const char *)

virtual char * GetName ()

- Public Member Functions inherited from vtkObject
 vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void DebugOn ()

virtual void DebugOff ()

bool GetDebug ()

void SetDebug (bool debugFlag)

virtual void Modified ()

virtual vtkMTimeType GetMTime ()

void PrintSelf (ostream &os, vtkIndent indent) VTK_OVERRIDE

void RemoveObserver (unsigned long tag)

void RemoveObservers (unsigned long event)

void RemoveObservers (const char *event)

void RemoveAllObservers ()

int HasObserver (unsigned long event)

int HasObserver (const char *event)

int InvokeEvent (unsigned long event)

int InvokeEvent (const char *event)

unsigned long AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long AddObserver (const char *event, vtkCommand *, float priority=0.0f)

vtkCommand * GetCommand (unsigned long tag)

void RemoveObserver (vtkCommand *)

void RemoveObservers (unsigned long event, vtkCommand *)

void RemoveObservers (const char *event, vtkCommand *)

int HasObserver (unsigned long event, vtkCommand *)

int HasObserver (const char *event, vtkCommand *)

unsigned long AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long AddObserver (unsigned long event, U observer, void(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)

unsigned long AddObserver (unsigned long event, U observer, bool(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)

int InvokeEvent (unsigned long event, void *callData)

int InvokeEvent (const char *event, void *callData)

unsigned long AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long AddObserver (const char *event, vtkCommand *, float priority=0.0f)

vtkCommand * GetCommand (unsigned long tag)

void RemoveObserver (vtkCommand *)

void RemoveObservers (unsigned long event, vtkCommand *)

void RemoveObservers (const char *event, vtkCommand *)

int HasObserver (unsigned long event, vtkCommand *)

int HasObserver (const char *event, vtkCommand *)

unsigned long AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long AddObserver (unsigned long event, U observer, void(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)

unsigned long AddObserver (unsigned long event, U observer, bool(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)

int InvokeEvent (unsigned long event, void *callData)

int InvokeEvent (const char *event, void *callData)

- Public Member Functions inherited from vtkObjectBase
const char * GetClassName () const

virtual void Delete ()

virtual void FastDelete ()

void Print (ostream &os)

virtual void Register (vtkObjectBase *o)

virtual void UnRegister (vtkObjectBase *o)

void SetReferenceCount (int)

virtual void PrintHeader (ostream &os, vtkIndent indent)

virtual void PrintTrailer (ostream &os, vtkIndent indent)

int GetReferenceCount ()

void PrintRevisions (ostream &)

virtual void PrintHeader (ostream &os, vtkIndent indent)

virtual void PrintTrailer (ostream &os, vtkIndent indent)

int GetReferenceCount ()

void PrintRevisions (ostream &)


Static Public Member Functions

static vtkboneLinearOrthotropicMaterial * New ()

static int IsTypeOf (const char *type)

static vtkboneLinearOrthotropicMaterial * SafeDownCast (vtkObject *o)

- Static Public Member Functions inherited from vtkboneMaterial
static vtkboneMaterial * New ()

static int IsTypeOf (const char *type)

static vtkboneMaterial * SafeDownCast (vtkObject *o)

- Static Public Member Functions inherited from vtkObject
static vtkObject * New ()

static void BreakOnError ()

static void SetGlobalWarningDisplay (int val)

static void GlobalWarningDisplayOn ()

static void GlobalWarningDisplayOff ()

static int GetGlobalWarningDisplay ()

static void SetGlobalWarningDisplay (int val)

static void GlobalWarningDisplayOn ()

static void GlobalWarningDisplayOff ()

static int GetGlobalWarningDisplay ()

- Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool IsTypeOf (const char *name)

static vtkObjectBase * New ()

static vtkObjectBase * New ()


Protected Member Functions

 vtkboneLinearOrthotropicMaterial ()

 ~vtkboneLinearOrthotropicMaterial ()

- Protected Member Functions inherited from vtkboneMaterial
 vtkboneMaterial ()

 ~vtkboneMaterial ()

- Protected Member Functions inherited from vtkObject
 vtkObject ()

virtual ~vtkObject ()

void RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void InternalGrabFocus (vtkCommand *mouseEvents, vtkCommand *keypressEvents=NULL)

void InternalReleaseFocus ()

void InternalGrabFocus (vtkCommand *mouseEvents, vtkCommand *keypressEvents=NULL)

void InternalReleaseFocus ()

- Protected Member Functions inherited from vtkObjectBase
 vtkObjectBase ()

virtual ~vtkObjectBase ()

virtual void CollectRevisions (ostream &)

virtual void ReportReferences (vtkGarbageCollector *)

 vtkObjectBase (const vtkObjectBase &)

void operator= (const vtkObjectBase &)


Protected Attributes

double YoungsModulusX

double YoungsModulusY

double YoungsModulusZ

double PoissonsRatioYZ

double PoissonsRatioZX

double PoissonsRatioXY

double ShearModulusYZ

double ShearModulusZX

double ShearModulusXY

- Protected Attributes inherited from vtkboneMaterial
char * Name

- Protected Attributes inherited from vtkObject
bool Debug

vtkTimeStamp MTime

vtkSubjectHelper * SubjectHelper

- Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32 ReferenceCount

vtkWeakPointerBase ** WeakPointers


Additional Inherited Members

- Static Protected Attributes inherited from vtkboneMaterial
static int nameCounter


Detailed Description

An object representing a linear orthotropic material.

vtkboneLinearOrthotropicMaterial stores the parameters for a linear orthotropic material.

See also
vtkboneMaterialTable vtkboneFiniteElementModel vtkboneGenerateHomogeneousLinearIsotropicMaterialTable vtkboneGenerateHommingaMaterialTable vtkboneLinearIsotropicMaterial vtkboneLinearAnistropicMaterial

Definition at line 37 of file vtkboneLinearOrthotropicMaterial.h.

Constructor & Destructor Documentation

◆ vtkboneLinearOrthotropicMaterial()

vtkboneLinearOrthotropicMaterial::vtkboneLinearOrthotropicMaterial ( )
protected

◆ ~vtkboneLinearOrthotropicMaterial()

vtkboneLinearOrthotropicMaterial::~vtkboneLinearOrthotropicMaterial ( )
protected

Member Function Documentation

◆ New()

static vtkboneLinearOrthotropicMaterial * vtkboneLinearOrthotropicMaterial::New ( )
static

◆ GetClassName()

virtual const char * vtkboneLinearOrthotropicMaterial::GetClassName ( )
virtual

Reimplemented from vtkboneMaterial.

◆ IsTypeOf()

static int vtkboneLinearOrthotropicMaterial::IsTypeOf ( const char *  type)
static

◆ IsA()

virtual int vtkboneLinearOrthotropicMaterial::IsA ( const char *  type)
virtual

Reimplemented from vtkboneMaterial.

◆ SafeDownCast()

static vtkboneLinearOrthotropicMaterial * vtkboneLinearOrthotropicMaterial::SafeDownCast ( vtkObject *  o)
static

◆ PrintSelf()

void vtkboneLinearOrthotropicMaterial::PrintSelf ( ostream &  os,
vtkIndent  indent
)
overridevirtual

Reimplemented from vtkObjectBase.

◆ SetYoungsModulusX()

virtual void vtkboneLinearOrthotropicMaterial::SetYoungsModulusX ( double  )
virtual

Set/get the Young's modulus (Ex, Ey, Ez). Assuming that your length units are mm, then modulus units are MPa. Default is 6829 MPa.

◆ GetYoungsModulusX()

virtual double vtkboneLinearOrthotropicMaterial::GetYoungsModulusX ( )
virtual

◆ SetYoungsModulusY()

virtual void vtkboneLinearOrthotropicMaterial::SetYoungsModulusY ( double  )
virtual

◆ GetYoungsModulusY()

virtual double vtkboneLinearOrthotropicMaterial::GetYoungsModulusY ( )
virtual

◆ SetYoungsModulusZ()

virtual void vtkboneLinearOrthotropicMaterial::SetYoungsModulusZ ( double  )
virtual

◆ GetYoungsModulusZ()

virtual double vtkboneLinearOrthotropicMaterial::GetYoungsModulusZ ( )
virtual

◆ SetPoissonsRatioYZ()

virtual void vtkboneLinearOrthotropicMaterial::SetPoissonsRatioYZ ( double  )
virtual

Set/get the orthotropic Poisson's ratio (nu_yz, nu_zx, nu_xy). Default is 0.3.

◆ GetPoissonsRatioYZ()

virtual double vtkboneLinearOrthotropicMaterial::GetPoissonsRatioYZ ( )
virtual

◆ SetPoissonsRatioZX()

virtual void vtkboneLinearOrthotropicMaterial::SetPoissonsRatioZX ( double  )
virtual

◆ GetPoissonsRatioZX()

virtual double vtkboneLinearOrthotropicMaterial::GetPoissonsRatioZX ( )
virtual

◆ SetPoissonsRatioXY()

virtual void vtkboneLinearOrthotropicMaterial::SetPoissonsRatioXY ( double  )
virtual

◆ GetPoissonsRatioXY()

virtual double vtkboneLinearOrthotropicMaterial::GetPoissonsRatioXY ( )
virtual

◆ GetPoissonsRatioZY()

double vtkboneLinearOrthotropicMaterial::GetPoissonsRatioZY ( )

Set derived orthotropic Poisson's ratio. Note that nu_ij/Ei = n_ji/Ej .

◆ GetPoissonsRatioXZ()

double vtkboneLinearOrthotropicMaterial::GetPoissonsRatioXZ ( )

◆ GetPoissonsRatioYX()

double vtkboneLinearOrthotropicMaterial::GetPoissonsRatioYX ( )

◆ SetShearModulusYZ()

virtual void vtkboneLinearOrthotropicMaterial::SetShearModulusYZ ( double  )
virtual

Get/get the orthotropic shear modulus (G_yz, G_zx, G_xy). Default is 2626.5 MPa.

◆ GetShearModulusYZ()

virtual double vtkboneLinearOrthotropicMaterial::GetShearModulusYZ ( )
virtual

◆ SetShearModulusZX()

virtual void vtkboneLinearOrthotropicMaterial::SetShearModulusZX ( double  )
virtual

◆ GetShearModulusZX()

virtual double vtkboneLinearOrthotropicMaterial::GetShearModulusZX ( )
virtual

◆ SetShearModulusXY()

virtual void vtkboneLinearOrthotropicMaterial::SetShearModulusXY ( double  )
virtual

◆ GetShearModulusXY()

virtual double vtkboneLinearOrthotropicMaterial::GetShearModulusXY ( )
virtual

◆ GetShearModulusZY()

double vtkboneLinearOrthotropicMaterial::GetShearModulusZY ( )
inline

Set derived orthotropic shear modulus. Note that G_ij = G_ji .

Definition at line 87 of file vtkboneLinearOrthotropicMaterial.h.

◆ GetShearModulusXZ()

double vtkboneLinearOrthotropicMaterial::GetShearModulusXZ ( )
inline

Definition at line 88 of file vtkboneLinearOrthotropicMaterial.h.

◆ GetShearModulusYX()

double vtkboneLinearOrthotropicMaterial::GetShearModulusYX ( )
inline

Definition at line 89 of file vtkboneLinearOrthotropicMaterial.h.

◆ Copy()

virtual vtkboneMaterial * vtkboneLinearOrthotropicMaterial::Copy ( )
overridevirtual

Creates a copy of this object. You should almost certainly give the copy or the original a new name.

Reimplemented from vtkboneMaterial.

◆ ScaledCopy()

virtual vtkboneMaterial * vtkboneLinearOrthotropicMaterial::ScaledCopy ( double  factor)
overridevirtual

Creates a copy of this object, with all the modulii scaled by factor. You should almost certainly give the copy or the original a new name. Note that you will have to delete the pointer when finished with it.

Reimplemented from vtkboneMaterial.

Member Data Documentation

◆ YoungsModulusX

double vtkboneLinearOrthotropicMaterial::YoungsModulusX
protected

Definition at line 106 of file vtkboneLinearOrthotropicMaterial.h.

◆ YoungsModulusY

double vtkboneLinearOrthotropicMaterial::YoungsModulusY
protected

Definition at line 107 of file vtkboneLinearOrthotropicMaterial.h.

◆ YoungsModulusZ

double vtkboneLinearOrthotropicMaterial::YoungsModulusZ
protected

Definition at line 108 of file vtkboneLinearOrthotropicMaterial.h.

◆ PoissonsRatioYZ

double vtkboneLinearOrthotropicMaterial::PoissonsRatioYZ
protected

Definition at line 109 of file vtkboneLinearOrthotropicMaterial.h.

◆ PoissonsRatioZX

double vtkboneLinearOrthotropicMaterial::PoissonsRatioZX
protected

Definition at line 110 of file vtkboneLinearOrthotropicMaterial.h.

◆ PoissonsRatioXY

double vtkboneLinearOrthotropicMaterial::PoissonsRatioXY
protected

Definition at line 111 of file vtkboneLinearOrthotropicMaterial.h.

◆ ShearModulusYZ

double vtkboneLinearOrthotropicMaterial::ShearModulusYZ
protected

Definition at line 112 of file vtkboneLinearOrthotropicMaterial.h.

◆ ShearModulusZX

double vtkboneLinearOrthotropicMaterial::ShearModulusZX
protected

Definition at line 113 of file vtkboneLinearOrthotropicMaterial.h.

◆ ShearModulusXY

double vtkboneLinearOrthotropicMaterial::ShearModulusXY
protected

Definition at line 114 of file vtkboneLinearOrthotropicMaterial.h.

The documentation for this class was generated from the following file:
Generated by doxygen 1.9.8
